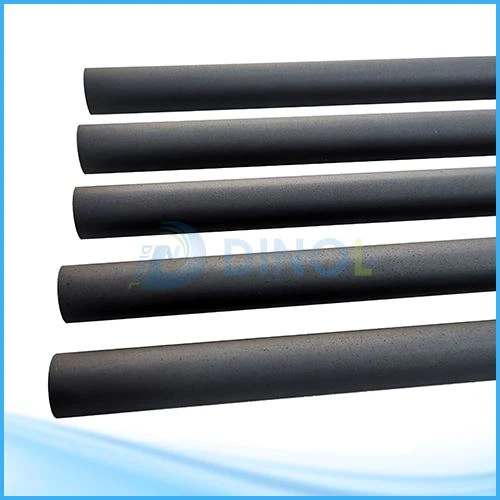

MMO Titanium Anode Tube
1.Produce name: Di Noer MMO Titanium Anode Tube
2.Titanium substrate: ASTM B338 Grade 1 or 2 Standards
3.Processing method: coating, brushing and sintering
4.Expected lifetime: 20-50 years as your requirements
5.Package details: Standard exporting wooden cases or as you required
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Di Noer MMO Titanium Anode Tube is a customized product, which can be customized according to the customer's use medium environment, such as the current, service life, type and thickness of coating, etc.
The MMO anode body is a titanium-based anode coated with mixed metal oxide IO2/tantalum oxide Ta2O5. The working life and rated current of the anode are determined by the anode body. The main body of the MMO anode is composed of a continuous titanium matrix. The MMO main anode must be titanium based, that is, the mixed metal oxide must be coated on the surface of the titanium matrix.
| Chemical Composition of MMO Titanium Anode Tube | |||
| Substrate | ASTM B 338 Gr 1 Titanium | ||
| Catalyst | Mixed Metal Oxide | ||
| MMO Ti Anode Tube Dimension For Sea Water Application | |||
| Diameter(mm) | Length(mm) | Current Rating*(A) | Expected life(Y) |
| 19 | 1200 | 43 | 20 |
| 25 | 500 | 24 | 20 |
| 25 | 1000 | 47 | 20 |
| 25 | 1200 | 57 | 20 |
| 25 | 1500 | 71 | 20 |
* Based on 20-year design life. * Customized can be acceptable | |||
Factory Pictures
Package & Shippement
